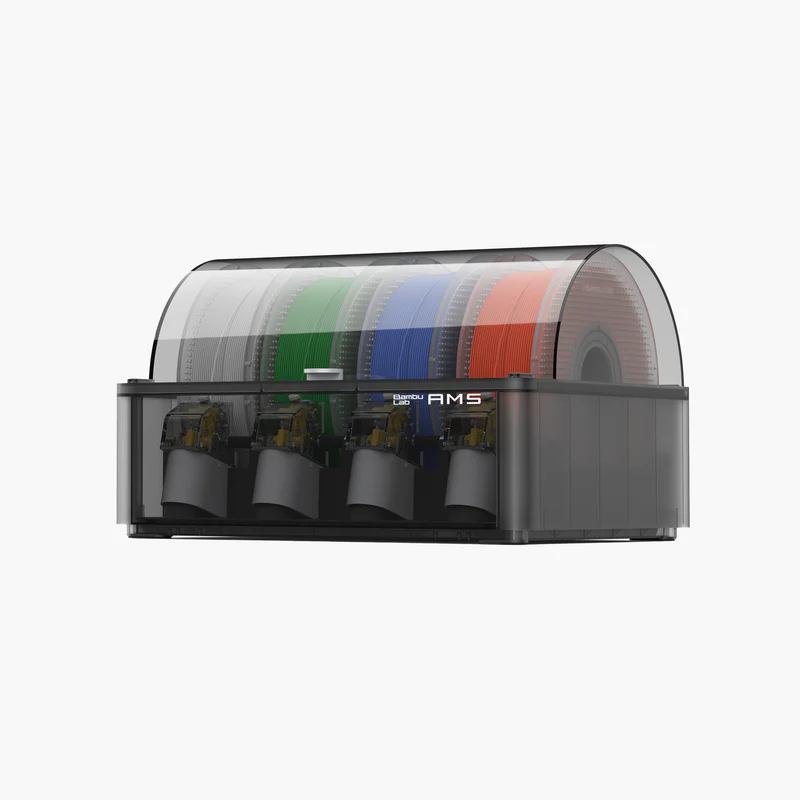

Bambu Lab AMS - Automatic Material System

6-pack Dessicant for AMS to keep filaments dry. Compatibility X1 and P1 Series User guide Please take 2 to 3 new desiccant packs, remove the plastic film from the desiccant, install it in the designated location for the AMS. Close the AMS cover to help keep your filament dry. Please ensure that the locking tabs on the AMS are closed to insulate the AMS from external air. How to check if the dessicant needs to be replaced When new, the desiccant will be a white powder. When the dessicant packs absorb moisture, they will gradually turn into a yellow paste. The desiccant needs to be changed when the entire pack is yellow because it loses the ability to keep the filament dry. We also recommend re-drying filament at that point.

RFID for intelligent printing Experience the future of 3D printing with the Bambu Lab AMS (Automatic Material System). All important printing parameters are stored in a practical RFID chip. The 3D printer can read the print parameters independently. No more tedious settings - simply insert your filament and start the printing process. Enjoy convenient and time-saving operation without complicated manual settings.   Recommended Printing Settings Drying Settings (Blast Drying Oven) 55 °C，8 h Printing and Keeping Container's Humidity < 20% RH (Sealed, with Desiccant) Nozzle Temperature 190 - 230 °C Bed Temperature (with Glue) 35 - 45 °C Printing Speed < 300 mm/s   Physical Properties   Density 1.24 g/cm³ Vicat Softening Temperature 57 °C Heat Deflection Temperature 57 °C Melting Temperature 160 °C Melt Index 42.4 ± 3.5 g/10 min   Mechanical Properties   Tensile Strength 35 ± 4 MPa Breaking Elongation Rate 12.2 ± 1.8 % Bending Modulus 2750 ± 160 MPa Bending Strength 76 ± 5 MPa Impact Strength 26.6 ± 2.8 kJ/m²    Product features - Easy to print and beginner-friendly- Smooth surface- Biodegradable- Diameter: 1.75 mm +/- 0.03 mm Reusable spoolBambu Lab's filament system is focused on an environmentally friendly and reusable spool design, reducing plastic waste by at least 20%. Bambu Lab attaches great importance to sustainability and the packaging material has been carefully selected to minimize the use of non-recyclable materials.

Bambu PLA SilkBambu PLA Silk is characterised by a silky, extremely glossy surface that gives your prints a luxurious appearance. Compared to other filaments with a silk-like texture, Bambu PLA Silk has been hardened, resulting in increased break resistance during printing and making it particularly suitable for decorations, artistic projects and 3D character models. The gloss intensity of the model printed with Silk material can be controlled by adjusting the printing temperature and speed. For a glossier surface, higher printing temperatures and/or lower speeds are recommended. Recommended print settingNozzle temperature                                                        210 - 240°CHeating bed temperature                                                35 - 45°CPrint speed                                                                      < 250 mm/sDrying settings                                                                55°C. 8hStorage at                                                                       < 20% RH Physical propertiesDensity                                                                            1.32 g/cm3Vicat softening temperature                                            56°CHeat deflection temperature                                            53°CMelting temperature                                                        152°CMelt flow index                                                                20.5 ‡ 1.2 g/10min Mechanical propertiesTensile strength                                                               35 + 3 MPaElongation at break                                                         3.5 + 0.6%Flexural modulus                                                            2220 + 90 MPaFlexural strength                                                             77‡3 MPaImpact strength                                                               24.5‡1.7 kJ/m2

Bambu PLA Sparkle is a next-level aesthetic filament that combines strength and sparkle. With metal particles included in its composition, Bambu PLA Sparkle adds a special sparkling look to your prints that sets them apart from the rest. However, it is not recommended to use a 0.2 mm nozzle for printing as clogging may occur. Take your 3D printing projects to new heights with Bambu PLA Sparkle! RFID for Intelligent Printing All printing parameters are embedded in RFID, which can be read through our AMS (Automatic Material System).  Load and print! No more tedious setting steps. Recommended pressure settingNozzle temperature                                               190 - 230°CHeating bed temperature                                       35 - 45°CPrint speed                                                             < 250 mm/sDrying settings                                                        55°C. 8hStorage at                                                               < 20% RH Physical propertiesDensity                                                                    1.26 g/cm3Vicat softening temperature                                    57°CHeat deflection temperature                                   55°CMelting temperature                                               156°CMelt flow index                                                        34.2 ‡ 3.3 g/10min Mechanical propertiesTensile strength                                                      33 + 3 MPaElongation at break                                                11.7 ‡0.7%Flexural modulus                                                    2310 + 140 MPaFlexural strength                                                    63 + 4 MPaImpact strength                                                      66.5 ‡3.6 kJ/m2

Filament with Spool RFID for Intelligent Printing All printing parameters are embedded in RFID, which can be read through our AMS (Automatic Material System). Recommended Printing SettingsDrying Settings (Blast Drying Oven)                                                                       55 °C，8 hPrinting and Keeping Container's Humidity                                                             < 20% RH (Sealed, with Desiccant)Nozzle Temperature                                                                                               190 - 230 °CBed Temperature (with Glue)                                                                                 35 - 45 °CPrinting Speed                                                                                                       < 300 mm/s Physical Properties Density                                                                                                                  1.31 g/cm³Vicat Softening Temperature                                                                                 63 °CHeat Deflection Temperature                                                                                 58 °CMelting Temperature                                                                                             163 °CMelt Index                                                                                                             39.4 ± 3.2 g/10 min Mechanical Properties Tensile Strength                                                                                                      30 ± 5 MPaBreaking Elongation Rate                                                                                      14.8 ± 4.2 %Bending Modulus                                                                                                  2360 ± 250 MPaBending Strength                                                                                                  53 ± 6 MPaImpact Strength                                                                                                     19.2 ± 3.7 kJ/m²

OverviewThe AMS Hub is used to expand the number of AMS connected to Bambu X1 series printers from 1 (4 channels) to a maximum of 4 (16 channels) to improve the refueling speed across your multiple AMS units and support the redundancy of a buffered signal. In the Box 2x Bus Cable - 6pin, 1xPTFE Tube, 2x M3*28 Screw   Installation Install the AMS Hub on the back of the printer, replacing the Filament buffer if you have one, and use the matching Bambu 4 Pin cable to connect to the printer, use the Bambu 6 Pin cable to connect to the first AMS, then continue to use the 6-pin cable to connect the remaining AMS in series. Use the matching PTFE Tube to connect the AMS Hub and the air tube connector on the back of the printer, the tube should pass between the 4-pin plug and the spool holder to reduce the resistance. According to the placement of the AMS and the printer, you can choose the appropriate length of the PTFE tube to connect the AMS and the AMS Hub. The tube should be as short as possible and avoid winding to reduce the feeding resistance.

RFID for intelligent printing Experience the future of 3D printing with the Bambu Lab AMS (Automatic Material System). All important printing parameters are stored in a practical RFID chip. The 3D printer can read the print parameters independently. No more tedious settings - simply insert your filament and start the printing process. Enjoy convenient and time-saving operation without complicated manual settings.   Recommended Printing Settings Drying Settings (Blast Drying Oven) 55 °C，8 h Printing and Keeping Container's Humidity < 20% RH (Sealed, with Desiccant) Nozzle Temperature 190 - 230 °C Bed Temperature (with Glue) 35 - 45 °C Printing Speed < 300 mm/s   Physical Properties   Density 1.24 g/cm³ Vicat Softening Temperature 57 °C Heat Deflection Temperature 57 °C Melting Temperature 160 °C Melt Index 42.4 ± 3.5 g/10 min   Mechanical Properties   Tensile Strength 35 ± 4 MPa Breaking Elongation Rate 12.2 ± 1.8 % Bending Modulus 2750 ± 160 MPa Bending Strength 76 ± 5 MPa Impact Strength 26.6 ± 2.8 kJ/m²    Product features - Easy to print and beginner-friendly- Smooth surface- Biodegradable- Diameter: 1.75 mm +/- 0.03 mm Reusable spoolBambu Lab's filament system is focused on an environmentally friendly and reusable spool design, reducing plastic waste by at least 20%. Bambu Lab attaches great importance to sustainability and the packaging material has been carefully selected to minimize the use of non-recyclable materials.

Bambu PLA Marble Bambu PLA Marble imitiert das Erscheinungsbild von Naturstein. Dank anorganischen Partikeln in seiner Struktur bietet es eine lebendige, steinähnliche Textur, die an Marmor, Granit oder Ziegel erinnert. Ihre Drucken erhalten einen natürlichen Touch, das Ihren Projekten ein beeindruckendes Finish verleiht . RFID für intelligentes Drucken Alle Druckparameter sind in RFID eingebettet, die über unser AMS (Automatic Material System) ausgelesen werden können. Einlegen und drucken! Keine mühsamen Einstellungsschritte mehr. Empfohlene DruckeinstellungDüsentemperatur                                                              190 - 230°CHeizbetttemperatur                                                           35 - 45°CDruckgeschwindigkeit                                                       < 250 mm/sTrocknungseinstellungen                                                  55°C. 8hLagerung bei                                                                     < 20% RH Physikalische EigenschaftenDichte                                                                              1.22 g/cm3Vicat-Erweichungstemperatur                                          57°CWärmeformbeständigkeit                                                 56°CSchmelztemperatur                                                          156°CSchmelzindex                                                                   322 + 450/10min Mechanische EigenschaftenZugfestigkeit                                                                    42 + 3 MPaBruchdehnungsrate                                                          6.7 ‡0.5%Biegemodul                                                                       2490 + 150 MPaBiegefestigkeit                                                                  85 + 5 MPaSchlagzähigkeit                                                                240+25 kJ/m2

Product Features Multi Color & Multi Material Capability High quality printing with 7 μm Lidar Resolution Upgradeable and customizable flexibility High speed CoreXY with 20000 mm/s² Acceleration Dual Auto Bed Leveling   What to Expect from the X1-Carbon 3D Printer 20 m/s² acceleration Micro lidar assisted bed leveling Active vibration compensation for better print quality Spaghetti failure detection and auto-pause Print resume after power outage Full advanced features of X1 3D printers

Bambu PLA Metal is a filament with a metallic textured surface designed to enhance the visual appeal of your 3D prints. Its design aims to mimic the texture of metal, although it does not contain any actual metallic fillers. With its advanced metallic surface, this filament gives your prints a professional and high-quality appearance and a touch of elegance without significantly affecting the overall printing performance of conventional PLA. RFID for intelligent printing All print parameters are embedded in RFID, which can be read via our AMS (Automatic Material System). Insert and print! No more tedious setting steps. Recommended print settingNozzle temperature                                                            190 - 230°CHeating bed temperature                                                    35 - 45°CPrint speed                                                                          < 300 mm/sDrying settings                                                                     55°C, 8hStorage at                                                                            < 20% RH Physical propertiesDensity                                                                                1.25 g/cm3Vicat softening temperature                                                62°CHeat deflection temperature                                               62°CMelting temperature                                                           160°C Mechanical propertiesTensile strength                                                                  46 ‡ 2 MPaElongation at break                                                            20.6 ‡1.4%Flexural modulus                                                               2290 + 210 MPaFlexural strength                                                               72 + 2 MPaImpact strength                                                                 58.9 ‡3.4 kJ/m2
