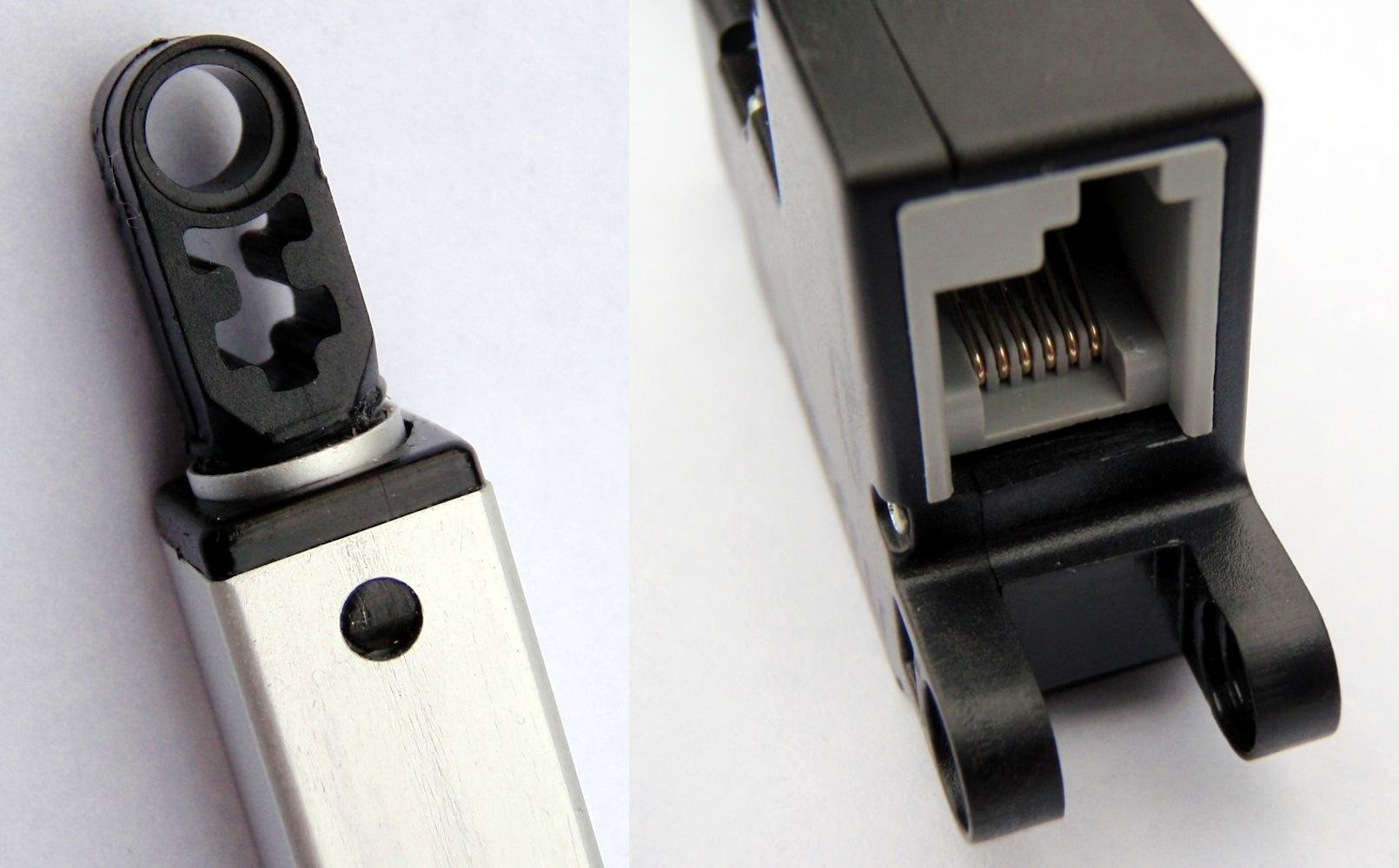

L12 EV3 Linear Actuator

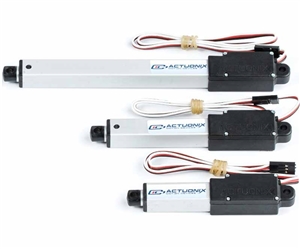

  L12 Actuator Series The L12 series is an axial design that utilizes a powerful PMDC motor and a rectangular cross section for increased strength. But by far the most attractive feature of this actuator is the broad spectrum of configurations available. Actuonix Motion Devices L12 is available in four stroke lengths: 10mm (Except “I” and "R"), 30mm, 50mm or 100mm, along with three force/speed combinations of 50:1, 100:1 or 210:1 gearing.  “I” Series: The “I” actuator models feature an on-board software-based digital microcontroller. The controller is non programmable and will configure itself for one of 4 input modes depending on which leads are plugged in on power up. Available input modes are: RC servo, 0-5v, 4-20mA or PWM. The “I” series is available in both 6v and 12v models.  “R” Series: This is a standard hobby-type remote-control digital servo interface (CMOS logic), compatible with most RC receivers. They are a 6v unit only “S” Series: These units are operated by reversing polarity on the actuator’s two leads. The “S” series has end of stroke limit switches to that will turn off the unit if it runs into its end stop.These can be run with a DPDT switch, relay or brushed DC motor controller. The “S” series is available in both 6v and 12v models. “P” Series: The “P” series actuators offer no built-in controller, but do provide an analog position feedback signal that can be input to an external controller. The “P” series can be used with our Linear Actuator Control Board (LAC) to give the “P” series the ability to be controlled with USB (via our Configuration Utility Software), 0-5v, 4-20mA, RC Servo or PWM. On board adjustment of speed, sensitivity and stroke limits are available via the LAC. The “P” series are available in 6v or 12v models.

The L16 series of mini linear actuators is the big brother of the L12 series. It is perfectly suited to applications with tight space and weight restrictions that require more force. It's relatively small size and impressive strength make the L16 a popular choice in industries such as robotics, aerospace, medical devices as well as a wide range of DIY home and automotive applications. It has an axial design that utilizes a powerful PMDC motor and a rectangular cross section for increased strength. But by far the most attractive feature of this actuator is the broad spectrum of configurations available. Actuonix Motion Devices L16 series is available in three stroke lengths: 50mm 100mm or 140mm along with three force/speed combinations of 35:1, 63:1 or 150:1.  “R” Series: This is a standard hobby-type remote-control digital servo interface (CMOS logic), compatible with most RC receivers. These units can also be operated via Arduino using the Arduino servo library. The "R" series are a 6v unit only. “S” Series: These units are operated by reversing polarity on the actuator’s two leads. The “S” series has end of stroke limit switches to that will turn off the unit if it runs into its end stop.These can be run with a DPDT switch, relay and are perfect for home or vehicular automation projects.The L16-S is 12v only.  “P” Series: The “P” series mini linear actuators offer no built-in control­ler, but do provide an analog position feed­back signal that can be input to an exter­nal controller. The “P” series can be used with our Linear Actuator Control Board (LAC) to give the “P” series the ability to be controlled with USB (via our Configuration Utility Software), 0-3.3v, 4-20mA, RC Servo or PWM. On board adjustment of speed, sensitivity, stroke limits as well as stall protection are available via the LAC. The L16-P is 12v only. L16 actuators are popular with RC enthusiasts and is the ideal micro linear actuator for home automation. Some other industries where our L16 actuators are in use are: Automotive Aviation Culinary Manufacturing Underground/pipeline Actuonix's longstanding commitment to quality, variety and customer service is why we are the go-to supplier of micro linear actuators to global brands, educational institutions and consumers. For more information about the L16 actuator you can check out the data sheet on our product pages or contact our support department. We'd be happy to help you choose the correct micro linear actuator for your application.
